Material tests for product safety 🧐

Because the lamps are electrical housings, it must be ensured that they comply with the prescribed standards. The results are that PP & HDPE can both be used for the lamps! ♻️💡
______________________________________

The first test is the "Glow wire test"
(IEC 60695-2-11: 2000) 🔥
-Glow wire for 30s (550°C, 750°C)
-Does it burn?
-If it burns, it must be extinguished within 60s
-Only HDPE, started to burn briefly at 750°C, went out again after 8s.
Result for Johannplasto:
-> PP & HDPE are suitable as electrical housings; components carrying electrical current can even be mounted directly on PP.
______________________________________

The second test is the "Ball pressuere test"
(IEC 60695-10-2: 2003) 🔬
-The samples are heated in an oven
(1: 75°C, 2: 125°C)
-Test weight with ball point according to the standard on the sample
-1 hour test time (sample cools down during this time)
-The impression diameter is measured
Result for Johannplasto:
-> Diameter at 75°C below 2mm: Suitable for electrical housings (HDPE).
-> Diameter at 125°C below 2mm: even suitable for components carrying electrical current (PP).
______________________________________

The third test is the device test according to DIN VDE 0701 🔌
-Visual inspection
-Measurement of the insulation resistance:> 2MOhm
-> Example test lamp in the picture:
>299MOhm
______________________________________

@realpreciousplastic
#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto #sustainability #sustainable #lamp #architecture #waste #injecting #makers #creative #electronics #innerdesign #eco #ecofriendly #fair #diy #maker #minimalism #engineering #recycle #inspection #cable #plastic #fire …

My cable source ♻️🔌

So many defective electrical devices still have good cables that I can use for my lamps. 💡
After assembly, all lamps with cables from electronic scrap are tested according to the standard (DIN VDE 0701). 🧐
Many thanks to @lebenshilfe_dresden for the cables and the opportunity to test my lamps! 📈
You can also see the amount of other old electronic devices in these halls like old mobile telephones, TVs or laptops…
Use your things as long as you can. ✌️

#preciousplastic #electronicwaste #electronicwasterecycling #recycling #upcycle #dresden #johannstadt #johannplasto …

Table lamp 'Pento' ♻️💡
-Black Edition-

⚖️ 500g recycled plastic waste
💎 Every lamp is an unique design object
🔨 Robust and made to last
✌️ Handmade in Germany (Dresden)
🌈 Choose your colour (Link in the profile)

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

Big thanks to @johannstadt.de and Philine Schlick for the nice article on Johannstadt.de! 📰🤓
(link in my profile)

It is written in German but I think you will find a way to translate it if you are interested. 👩‍💻👨‍💻🧑‍💻

I'm excited about how the journey will continue.
♻️💚🐸

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

One mould – different versions ♻️💡This table lamp 'Sunko' has sunken pentagons instead of planar surfaces 📐🤓

Link in profile or message if you are interested.

⚖️ 250g plastic waste per lamp
💎 Every lamp is an unique design object
🔨 Robust and made to last
✌️ Handmade in Germany (Dresden)
🌈 Choose your own colour

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

Reusable Johannplasto sticker 🔵♻️
Thanks @fis.ik for the gift! 💚☺️

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

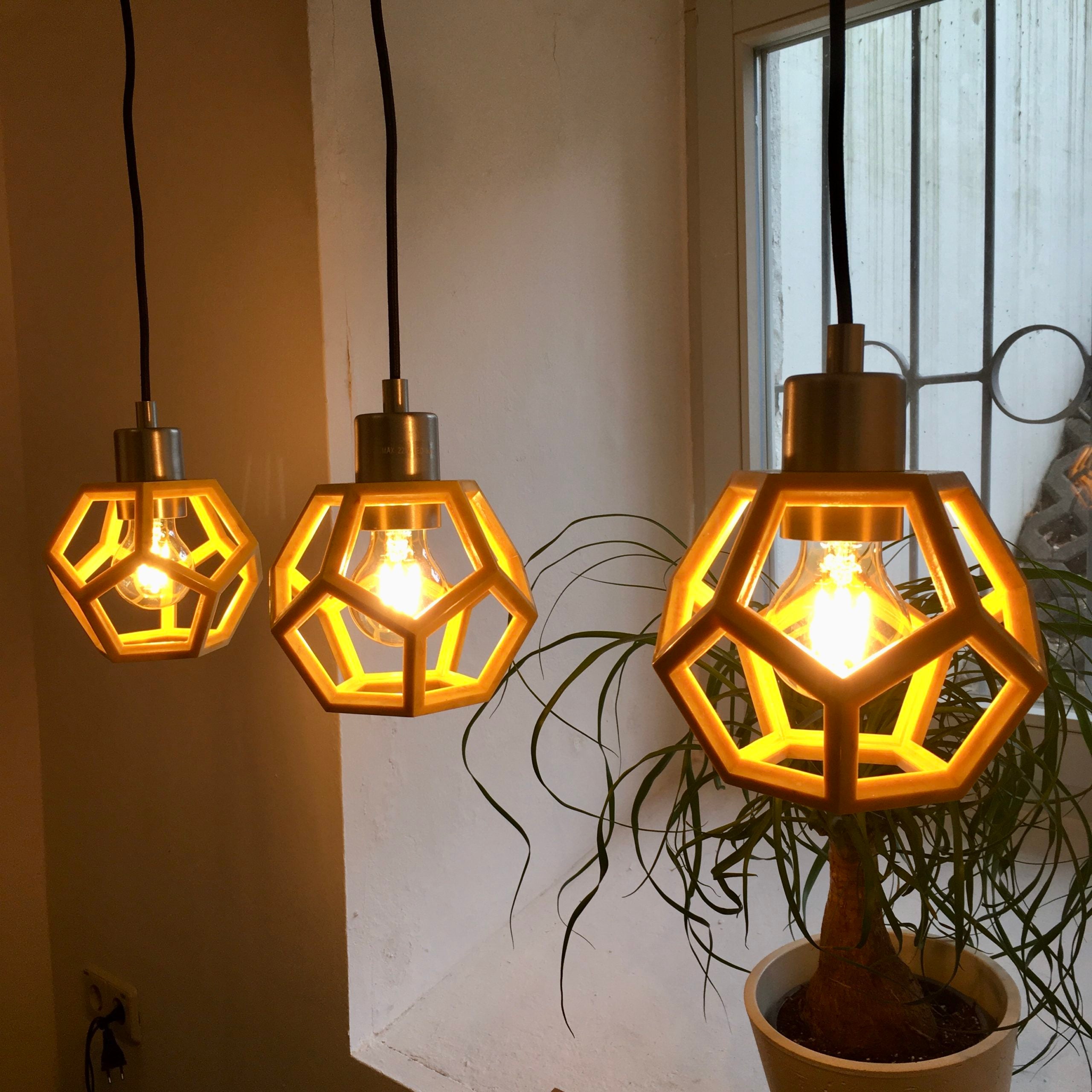

Hanging lamp 'Shado' ♻️💡

⚖️ 250g plastic waste per lamp
💎 Every lamp is an unique design object
🔨 Robust and made to last
✌️ Handmade in Germany (Dresden)
🌈 Possible in 🔴🟢🔵🟣⚫️⚪️

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

✨GIVEAWAY!✨ 🥳🎉🎄

I would like to give this hanging lamp ('Framo' red-pink) to someone who can really use it and who has had a really hard time this year! 💚

In January of this year I started Johannplasto and even if there were ups and downs, I am very, very satisfied with the year and the beginning! 🍀

Some have been hit really hard in this crazy year. Please share this post in your story or so that I can somehow see it and link it to the person who would like to be given this light.💡Even if the person does not have Instagram, just write down a name. 📝

On December 24th, I will raffle the lucky winner by a random generator 🔀 and send the lamp over as the first act after the Christmas break. 📦

Thank you and happy holidays! ✌️🕊

#preciousplastic #plasticrecycling #plasticwaste #recycling #stopmotion #dresden #johannstadt #johannplasto …

Table lamp 'Pento' ♻️💡

⚖️ 500g plastic waste per lamp
💎 Every lamp is an unique design object
🔨 Robust and made to last
✌️ Handmade in Germany (Dresden)
🌈 Choose your colour (Link in the profile)

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

Green Production
🐸🟢♻️

Next orders are 3 green 'Pento's💚
This is a batch of 50% green and 50% white HDPE. ⚖️

There is still enough Red, Blue, Green, Pink, Black and White plastic waste waiting to get transformed into a new and long life. 🥳
#saynotosingleuse
#saynotosingleuseplastic

The lamps can be ordered on the Johannplasto website (Link in profile 👆)
or on the @realpreciousplastic bazar🎪👈 where you can find also a lot of more nice recycled plastic products🤩

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

Production ♻️

🆕 From now on every lamp comes with a switch and the puller is also from recycled plastic ✌️

⚖️ 0,5kg plastic waste gets recycled for this table lamp 🥳

♻️Join the plastic recycling movement @realpreciousplastic 🎉

Injection machine @plastichubcat

#preciousplastic #plasticrecycling #plasticwaste #recycling #stopmotion #dresden #johannstadt #johannplasto …

Warm light for cold nights
🤗♻️💡

#preciousplastic #plasticrecycling #plasticwaste #recycling #upcycle #dresden #johannstadt #johannplasto …

New version ♻️🎉 Like the lamp 'Framo', but in small -> 'Frami' 😄
Less work, smaller price🤓

♻️ Frame from 100% recycled plastic waste: PP (5), HDPE (2), LDPE (4) or PS (6)
💡 Light: LED-Filament bulb

#preciousplastic #plasticrecycling #plasticwaste #recycle #recycling #upcycle #sustainability #sustainable #design #lamp #architecture #art #waste #injecting #shredding #makers #design #creative #electronics #innerdesign #eco #ecofriendly #fair #diy #maker #minimalism #engineering #bedroom #dresden #johannstadt #johannplasto …

New colours ♻️🎉

♻️ Frame from 100% recycled plastic waste: PP (5), HDPE (2), LDPE (4) or PS (6)
💡 Light: LED-Filament bulb

@realpreciousplastic
#preciousplastic #plasticrecycling #plasticwaste #recycle #recycling #upcycle #sustainability #sustainable #design #lamp #architecture #art #waste #injecting #shredding #makers #design #creative #electronics #innerdesign #eco #ecofriendly #fair #diy #maker #minimalism #engineering #bedroom #dresden #johannstadt #johannplasto …

Plates with frames combined with full plates 🧩 🥳
A lot combinations are possible, any ideas? 🤔🤓

♻️ Frame from 100% recycled plastic waste: PP (5), HDPE (2), LDPE (4) or PS (6)
💡 Light: LED-Filament bulb

Big thanks to @realpreciousplastic🙏
#preciousplastic #plasticrecycling #plasticwaste #recycle #recycling #upcycle #sustainability #sustainable #design #lamp #architecture #art #waste #injecting #shredding #makers #design #creative #electronics #innerdesign #eco #ecofriendly #fair #diy #maker #minimalism #engineering #bedroom #dresden #johannstadt #johannplasto …

New product!🥳
Hanging lamp 'Shado' from recycled plastic ♻️💡

Makes a warm and special light in your home, in bars, shops and everywhere else! ☺️

Available in many nice colours 🎉
🔵🟢🔴🟣🟡⚫️⚪️
Want one? Link in profile👆

Details:
♻️ Frame: 100% recycled plastic waste:
PP (5), HDPE (2), LDPE (4) or PS (6)
💡 Light: LED-Filament bulb – Diameter: 60mm

#preciousplastic #plasticrecycling #plasticwaste #recycle #recycling #upcycle #sustainability #sustainable #design #lamp #architecture #art #waste #injecting #shredding #makers #design #creative #electronics #innerdesign #eco #ecofriendly #fair #diy #maker #minimalism #engineering #bedroom #dresden #johannstadt #johannplasto …

Hanging lamp from recycled plastic ♻️💡

Makes a warm and special light in your home, in bars and everywhere else! ☺️

Available in many nice colours 🎉
🔵🟢🔴🟣🟡⚫️⚪️
Want one? Link in profile👆

Details:
♻️Frame: 100% recycled plastic waste: PP(5), HDPE(2), LDPE(4) or PS(6)
💡Light: LED-Filament bulb – Diameter: 60mm

Big thanks to @realpreciousplastic🙏
#preciousplastic #plasticrecycling #plasticwaste #design #lamp #architecture #art #waste #injecting #shredding #makers #design #creative #recycling #upcycle #machine #electronics #innerdesign #eco #ecofriendly #fair #diy #maker #minimalism #engineering #sustainability #sustainable #bedroom #dresden #johannstadt #johannplasto …

Step 4: Final product 🎉

Table lamp from plastic waste ♻️💡
Looks great on your nightstand, in your office, in bars and everywhere else!
Available in many nice colours 🥳

Want one? Link in profile👆

💎Base: 100% recycled plastic waste: PP(5), HDPE(2), LDPE(4) or PS(6)
🔌Cable: From local electronic waste – insulation tested (DIN VDE 0701)
💡Light: LED-Filament bulb – Diameter: 125mm

Website: johannplasto.de

#preciousplastic #plasticrecycling #plasticwaste #design #lamp #architecture #art #waste #injecting #makers #creative #design #innerdesign #recycling #upcycle #upcycling #machine #electronics #eco #ecofriendly #fair #diy #maker #engineering #sustainability #sustainable #dresden #johannstadt #johannplasto …

Step 3: Injecting

After shredding the plastic waste it´s time to melt! ♻️🎉
The granulate becomes meltable in a heating tube and can thus be injected into new shapes 💎
Stay tuned for the first product 🥳
🎵Music: @theohohohs – „Wu-Acoustic Remix“ (first seconds 😉, check them in Spotify for more👌)
#preciousplastic #plasticrecycling #plasticwaste #waste #injecting #shredding #makers #design #recycling #upcycle #machine #electronics #eco #ecofriendly #fair #diy #maker #engineering #sustainability #sustainable #dresden #johannstadt #johannplasto …

Shredding colours!♻️⚙️🎉
@realpreciousplastic

#preciousplastic #plasticrecycling #plasticwaste #waste #shredding #makers #design #recycling #upcycle #machine #motor #electronics #eco #ecofriendly #fair #diy #maker #engineering #sustainability #sustainable #colour #colours #dresden #johannstadt #johannplasto …

Step 2: Shredding

The basis for the most plastic recycling processes is shredding the sorted plastic waste into small granulate. The Johannplasto shredder can shred plastic waste up to a thickness of 5mm, does its job very quietly and lets rain up to 5kg of plastic granulate (5 or 8mm) per hour. 💪
It was a nice journey to build this machine, big thanks to my brother @stefanpeterberns who made the electronics inside the box and to the PreciousPlastic-Community @realpreciousplastic for inspiration and help!
Let’s shred plastic waste!♻️⚙️🎉

#preciousplastic #plasticrecycling #plasticwaste #waste #shredding #makers #design #recycling #upcycle #machine #motor #electronics #eco #ecofriendly #fair #diy #maker #engineering #sustainability #sustainable #worldcleanupday #dresden #johannstadt #johannplasto …

Step 1: Collecting:

👀Watch out for the recycling codes
♻️2 (HDPE), ♻️4 (LDPE),
♻️6 (PS) & ♻️5 (PP)
🧽After cleaning and sorting, the plastic waste is ready for shredding -> The basis for plastic recycling💪
👉Collection points for Dresden soon on johannplasto.de

Big thanks to @realpreciousplastic🙏
#preciousplastic #plasticrecycling #plasticcollection #plasticwaste #shredding #recycling #machine #3phase #eco #ecofriendly #fair #diy #maker #dresden #johannstadt #johannplasto …

The e-waste problem:

Mining Copper – Chile: high water consumption, natural damage.

Mining Tantalum & Cobalt – Congo: slave labor.

Mining Tin – Indonesia: Soap deposits: Floating destroys coral reefs, fish and soils, deaths from landslides.

Mining Rare earths: dysprosium, neodymium, praseodymium, yttrium: High energy consumption to get them out of the minerals.

Manufacturing: The working conditions in the manufacturing companies are inhumane (Child labor, extremely high work pressure, suicides).

Short lifespan of most electronic devices (Average duration of smartphones: 2,5 years, 1,4 billions smartphones per year).

Only about 10% gets recycled.

Most electronic waste is exported where it is a massive threat to people and the environment.

E-waste is the world's largest growing garbage dump: 50 million tons in 2018 worldwide, increasing every year.

Sources:
statista.com
deutschlandfunk.de
fairloetet.de

Last 5 pictures:
@dieumweltdruckerei
photos: Kevin Riemer-Schadendorf

Film tip: „Welcome to Sodom“

#ewaste #ewasterecycling #recycling #waste #dump #supplychain #agbogbloshie #welcometosodom #johannplasto …

Plastic pollution problem:

In the last 10 years we have made more plastics than we did in the last 100 years.

Half of those plastic products are single-use plastics.

About 10 million tons of plastic is dumped into world's oceans every year.

Over 80 percent of ocean plastic comes from the land (Dumps->Rivers->Ocean)

Fish and birds takes small pieces of plastic and microplastics directly, with mostly serious consequences.

The ratio of microplastic to plankton is already about 1:2.

Worldwide we recycle less than 15%.

Sources:
deutschlandfunk.de
sciencemag.org
Film tip: “A plastic ocean”

Big thanks to @fisk.tom for the first picture!

#preciousplastic #plasticwaste #recycle #plasticocean #plasticfree #ocean #johannplasto …
